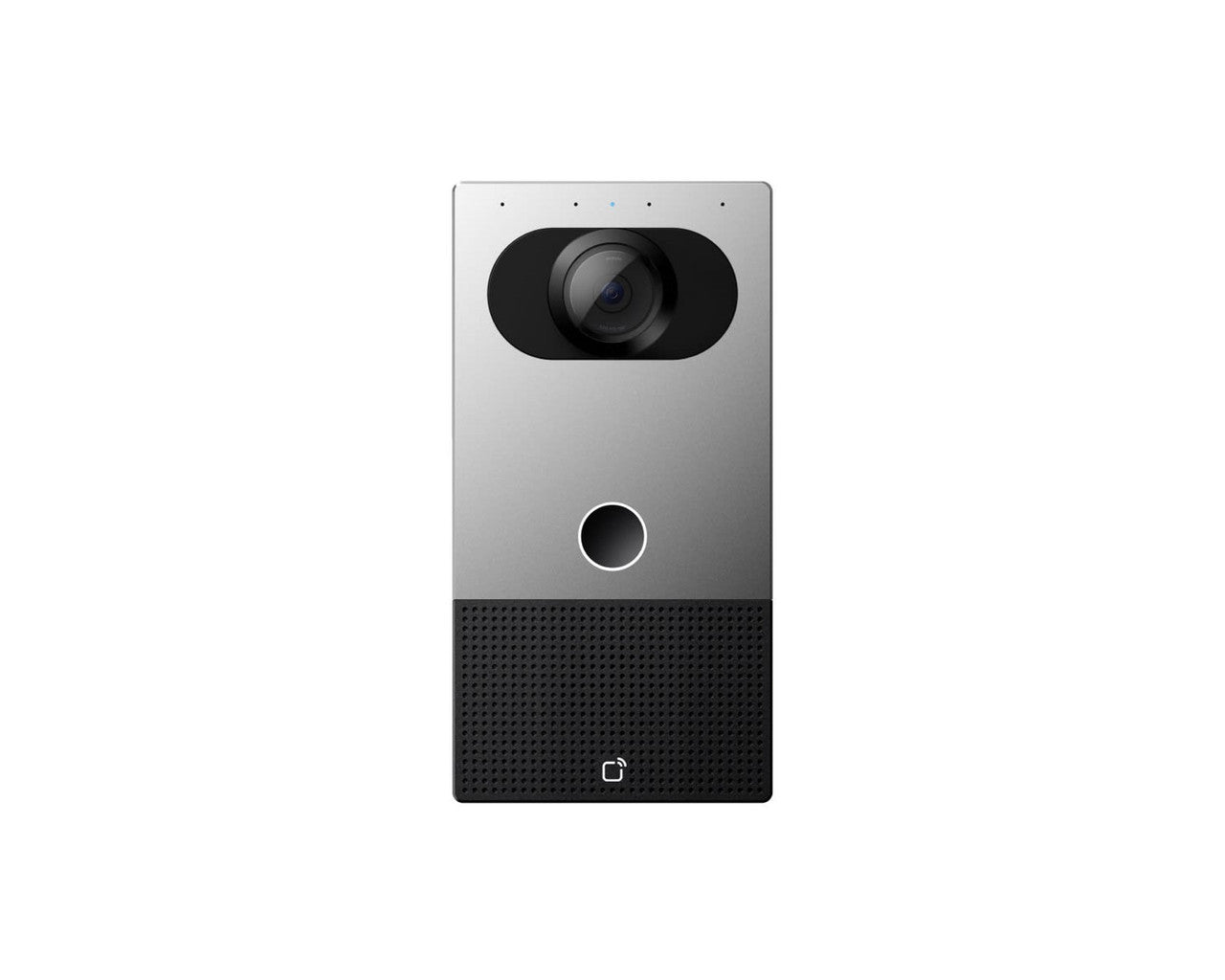

Verkada TD53 IP intercom station video
Verkada TD53 IP intercom station video
Description
Quick tech specs
- IP intercom station
- video
- 10/100/1000 Ethernet
- with camera
- wired
Know your gear

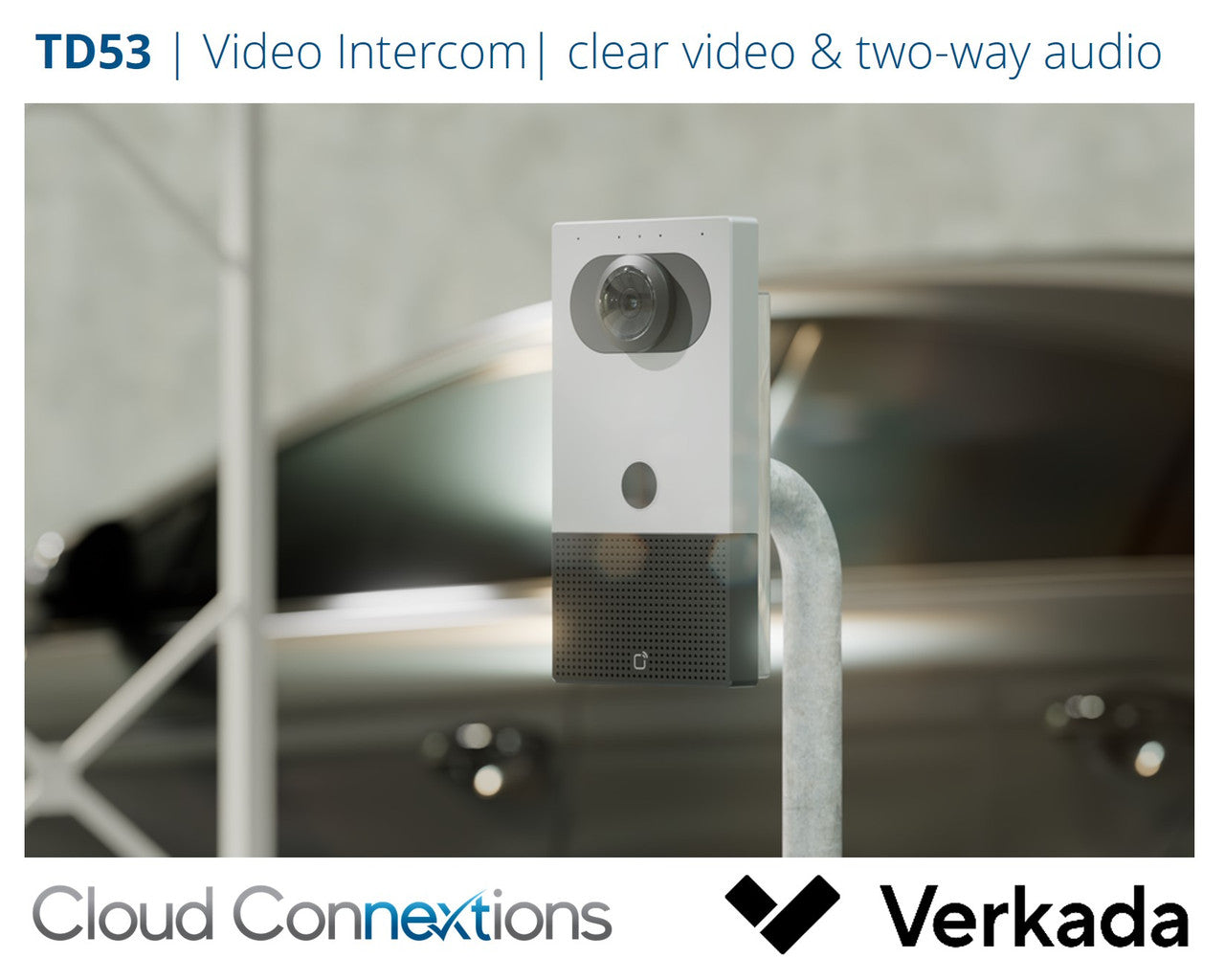

The Verkada TD53 IP intercom station combines functionality and reliability for seamless communication and access control. With its integrated camera and microphones, it offers two-way communication along with a video feed for enhanced security. The device operates under diverse environmental conditions, with a wide operating temperature range from -40°C to 50°C, and is designed for outdoor use with an IP65 rating for water and dust resistance. This intercom features robust connectivity technologies including Ethernet and Power over Ethernet (PoE+) for easy installation. It supports NFC technology, echo cancellation, and noise suppression to ensure clear audio during interactions. The integrated card reader supports various card technologies, providing flexibility in access control options, making it an ideal solution for both commercial and residential applications.
Tech specs
| Title | Description |
|---|---|
| Brand | Verkada |
| Product Line | Verkada |
| Model | TD53 |
| RAM Installed | 512 GB |
| Connectivity Technology | Wired |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Bluetooth (BLE) clients support, Echo cancellation, NFC support, Noise suppression, Tamper detection |
| Power Over Ethernet (PoE) | PoE+ |
| Wired Protocol | 10/100/1000 Ethernet |
| Interfaces | 2 x relay, 3 x alarm input, Serial (RS-485) |
| Image Sensor Size | 1/2.8" |
| Image Sensor Type | CMOS |
| Audio Support | Yes |
| Max Video Resolution | 2688 x 1944 |
| Night Vision | Yes |
| Required Voltage | DC 30 volt |
| Lens Aperture | F/2.1 |
| Max Operating Temperature | 122 degree Fahrenheit |
| Min Focal Length | 2.12 millimetre |
| Min Operating Temperature | -40 degree Fahrenheit |
| Sensor Resolution | 5 megapixel |
| Sensor Size (metric) | 9.1 mm (1/2.8") |
| Buttons Quantity | 1 |
| Card Technology | HID MIFARE, HID MIFARE DESFire EV3, MIFARE DESFire |
| Environment | Outdoor |
| Features | 100° field of view (vertical), 130° field of view (horizontal), 15 meters detection range, 160° field of view (diagonal), Fixed iris, LED Indicator, Max SPL 90 dB, Two-way communication, Wide Dynamic Range (WDR) |
| Functions | Access control |
| Integrated Components | 4 microphones, Camera, Card reader, Speaker (4W) |
| Packaged Quantity | 1 |
| Power Source | PoE |
| Product Type | IP intercom station |
| Included Accessories | Grommet punch, Mounting kit, Mounting plate, Surface mount, T10 security torx key |
| Height | 9 inch |
| Weight | 2.2 lbs |
| Width | 4.6 inch |
| Depth | 1.3 inch |
| Materials | Aluminum, Polycarbonate, Steel |
| Color Category | Black, Silver |
| Compliant Standards | CSA C22.2 62368-1, FCC, FCC Part 15 B Class B., ICES-003 Class B, IEEE 802.3af, IEEE 802.3at, IK07, IP65, IRCM, UKCA, UL 294, UL/IEC 62368-1, ULC 60839-11-1 |
| Limited Warranty | 10 Year |
