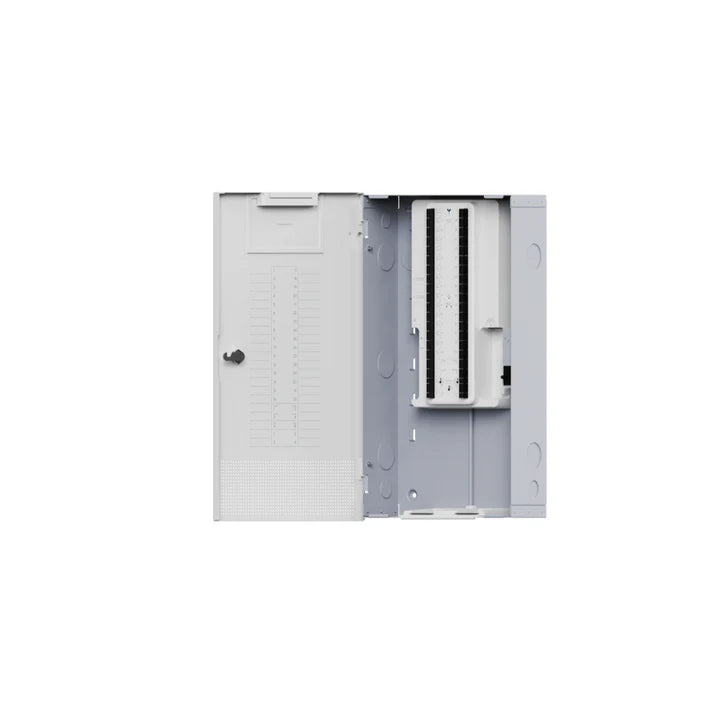

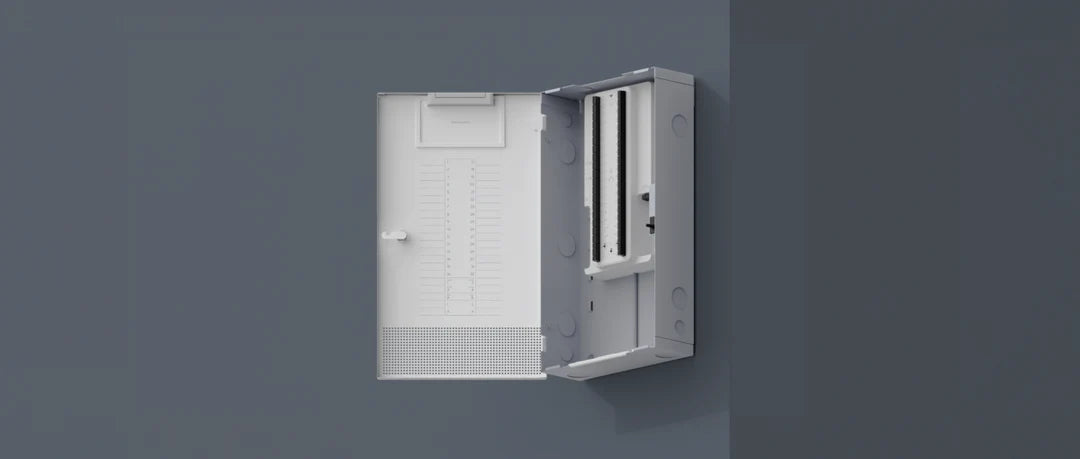

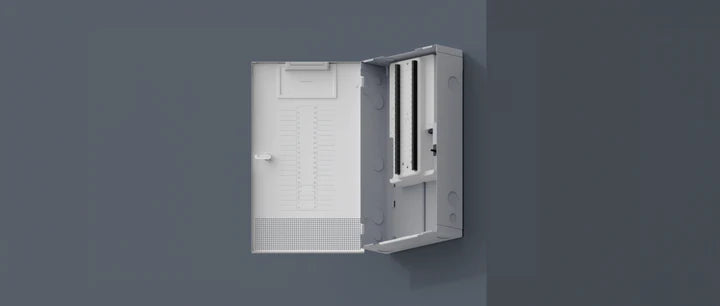

Verkada BP52 Alarm Panel

Name: Verkada BP52 Alarm Panel
Brand: Classroom Tech Integrators
SKU: BP52-HW-NA
Availability: InStock

Get a Quote

Description

Verkada is leading the cloud-managed enterprise building security industry by enabling over 17,000 organizations in over 70 countries to protect their people and property in a way that respects individuals' privacy. Designed with simplicity in mind, Verkada offers six product lines that provide unparalleled visibility through a single cloud-based software platform.

Product Specifications

Power Consumption	175W max See Output Specifications table for load limits
Power Input	100-240V AC (50-60Hz) 2x battery slots (for ACC-VBX-200WH) 2x battery enclosure ports (for ACC-VBX-ENC)
VLink Wireless Range	Open field with line of sight: 300 ft / 90 m Expect reduced range indoors, depending on environment
Uplink	100/1000 Mbps RJ45 port, USB 2.0 (for ACC-CEL-LTE-2)
Wireless Communication	VLink sub-GHz transceiver
Alarm Inputs	32x inputs with 12V DC aux power Compatible with variable EOL resistors (1kΩ - 4.7kΩ)
Conventional Fire Input (IDC)	2x 2-wire or 2x 4-wire Initiating Device Circuit inputs (conventional) with switch-selectable 12/24V DC aux power Note: IDC inputs share a single switch for voltage selection
RS485 Outputs	4x RS485 outputs with 36V DC aux power
Tamper Detection	Yes
Relay Outputs	100/1000 Mbps RJ45 port, USB 2.0 (for ACC-CEL-LTE-2)
Addressable Fire Input (SLC)	2x 2-wire Signaling Line Circuit inputs (addressable) with 36V DC aux power
PoE Outputs	4x PoE+ / 802.3at capable ports 40W total power budget
Dimensions (with enclosure)	Height: 21.9" (55.7 cm) Width: 12.7" (32.3 cm) Depth: 4.6" (11.6 cm)
Weight	16.2 lb (7.3 kg)
Certifications	FCC, IC, CE, UKCA, RCM, CEC BC, UL/IEC 62368-1, CSA NO22.2 62368-1
Operating Temperature and Humidity	32 to 122° F (0 to 50° C) 0-90% RH non-condensing
Warranty	10 years
Included Accessories	AC cable, VLink antenna, 32x 1kΩ EOL resistors, wall mount, 2x keys for built-in lock, flathead screwdriver, 4x plywood screws
Mounting Options	Wall mount
