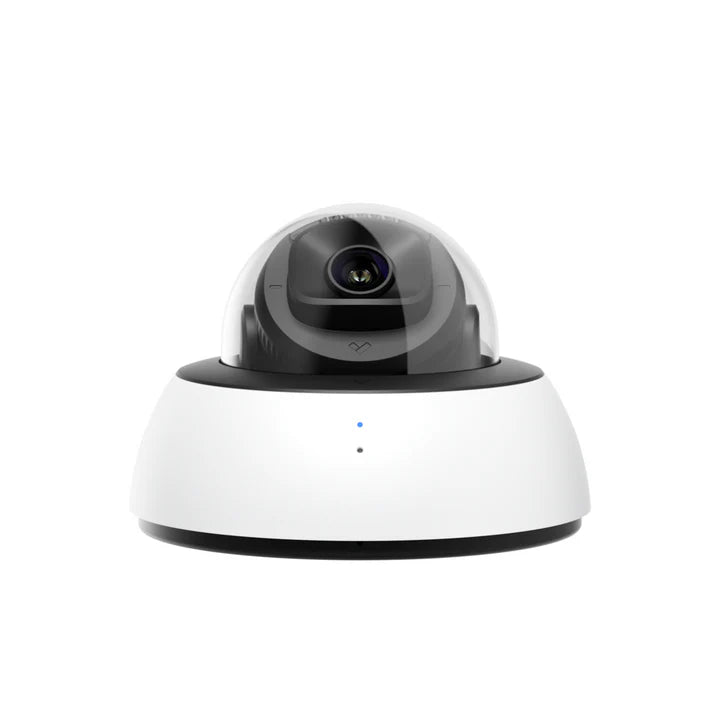

Verkada CD53 Dome Indoor Camera

Name: Verkada CD53 Dome Indoor Camera
Brand: Classroom Tech Integrators
SKU: CD53-256-HW
Availability: InStock

Get a Quote

View full details

Description

Dome cameras are unobtrusive, vandal-resistant, and simple to install.

Product Specifications

Image Sensor	1 / 2.8″ Progressive CMOS
Sensor Resolution¹	5MP (2688 x 1944)
Lens Type	Varifocal; motorized zoom
Focal Length	2.8 - 8mm
Aperture	F1.3 - F2.4
Iris	P-Iris
Field of View (after LDC²)	Horizontal: 109° - 39° (91° - 36°) Vertical: 80° - 29° (71° - 28°) Diagonal: 140° - 48° (107° - 44°)
Sensor Movement	Tilt: 60° Pan: 360° Rotation: 350°
Shutter Speed	1 / 30 sec. to 1 / 10,000 sec.
Day/Night	IR-cut filter for day and night function
IR Cut Filter	Yes
IR Range	30m / 98ft
Minimum Illumination	0.009 lux @ F1.9 (Color) 0 lux with IR Illuminators on
Onboard Storage	Capacity: From 256GB to 2TB Card: MicroSD, SDXC
CPU	Ambarella CV75S88
Compression	H.265, H.264
Frame Rate³	24fps
Live Streaming Settings	High quality (HQ): Up to 3,000 Kbps (default) Standard quality (SQ): Up to 600 Kbps
Historical Video Settings	Adaptive quality¹
Audio	Supported
Audio Capacity	One-way audio
Interface	Built-in microphone
Effective Range	5m / 16ft
Power Input⁴	With IR: IEEE 802.3af Type 2 PoE Without IR: IEEE 802.3af Type 1 PoE Extended temperature range: N/A
Power Consumption⁴	With IR: 37V-57V, 0.39A-0.29A, 16.8W Without IR: 37V-57V, 0.23A-0.15A, 8.5W Extended temperature range: N/A
Connectivity	RJ-45 cable connector for network/PoE connection; 10 / 100 / 1000 Mbps
RTSP	RTSP 1.0 RFC 2326 Max concurrent streams: 2 Audio support: Yes
Operating Temperature	-10°C to 50°C / 14°F to 122°F
Humidity	0 to 90%
Certifications	FCC, ICES, IK08 impact rating
LED Indicator	System power, status indicator and debug indicator
Warranty	10 years
Included Accessories	Screw packs, mount plate with leveler, T10 security driver
Weight	Camera: 963g / 33.97oz Mount plate: 193g / 6.81oz
Dimensions	Ø: 155.0mm / 6.10in, H: 109.0mm / 4.29in with mount plate Ø: 155.0mm / 6.10in, H: 101.9mm / 4.01in without mount plate
Body	Aluminum, plastic dome trim
Alerts	Camera status, motion detection, people detection, vehicle detection, Person of Interest detection, crowd detection, line-crossing detection, loitering detection, AI-powered alerts
People Analytics	People search, attribute search, face search, Occupancy Trends, motion search, trajectory analysis, selective face blurring, AI-powered search
Vehicle Analytics	Vehicle search, attribute search, motion search, trajectory analysis, Occupancy Trends, AI-powered search
Streaming and storage	Cloud backup, confi gurable retention days, selectable storage location, low bandwidth mode, timelapse, RTSP
Sharing and privacy	Live Links, live face blur, privacy regions, audit log
Verkada	Video Security Camera System
