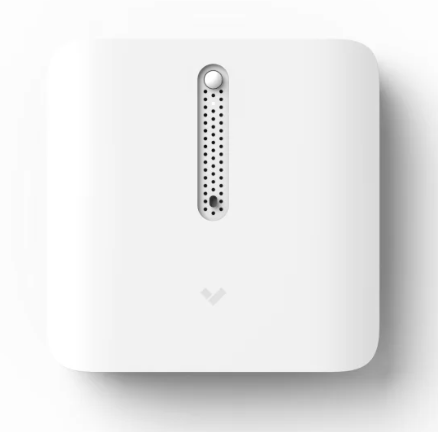

SV23 Air Quality Sensor

Name: SV23 Air Quality Sensor
Brand: Classroom Tech Integrators
Availability: InStock

Get a Quote

View full details

Description

Leverage an all-in-one sensor to uncover new insights about your environment.

Product Specifications

Title	Description

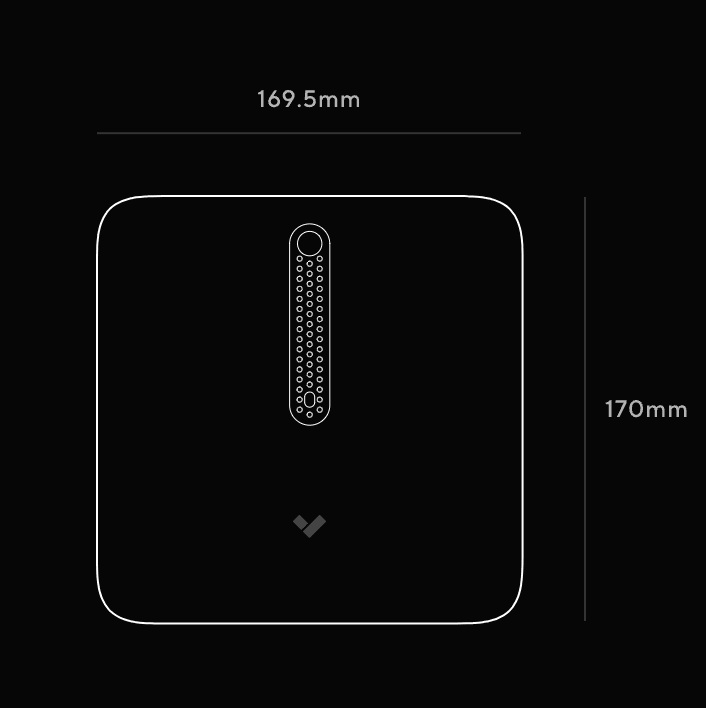

Dimensions / Weight	L: 170mm / 6.69 in, W: 169.5mm / 6.67 in H: 48mm / 1.88 in, 554 g / 19.54 oz
Calibration	Factory calibrated
Power	Power Consumption: 4W, Power Input: IEEE 802.3af PoE
Connectivity	RJ-45 cable connector for Network/PoE connection
LED Indicator	System power and status indicator
Operating Range	-5°C to +45°C (23°F to 113°F)
Sampling Frequency	5s
Device Storage	Up to 365 days
Cloud Storage	Up to 365 days (audio excluded SV25 only)
Offline Mode	Continues sampling and storing data on device
Operating Area	Indoor
Countries of Sale	USA, Canada, India, UK, EU, Aus, NZ, Rest of World*
Compliance & Safety	For hardware certification information, please visit verkada.com/compliance
Included Accessories	Mounting Plate, Installation Kit (with T10 Security Torx Screwdriver, Mounting Screws, Washers, Drywall Anchors & Wing Nuts)

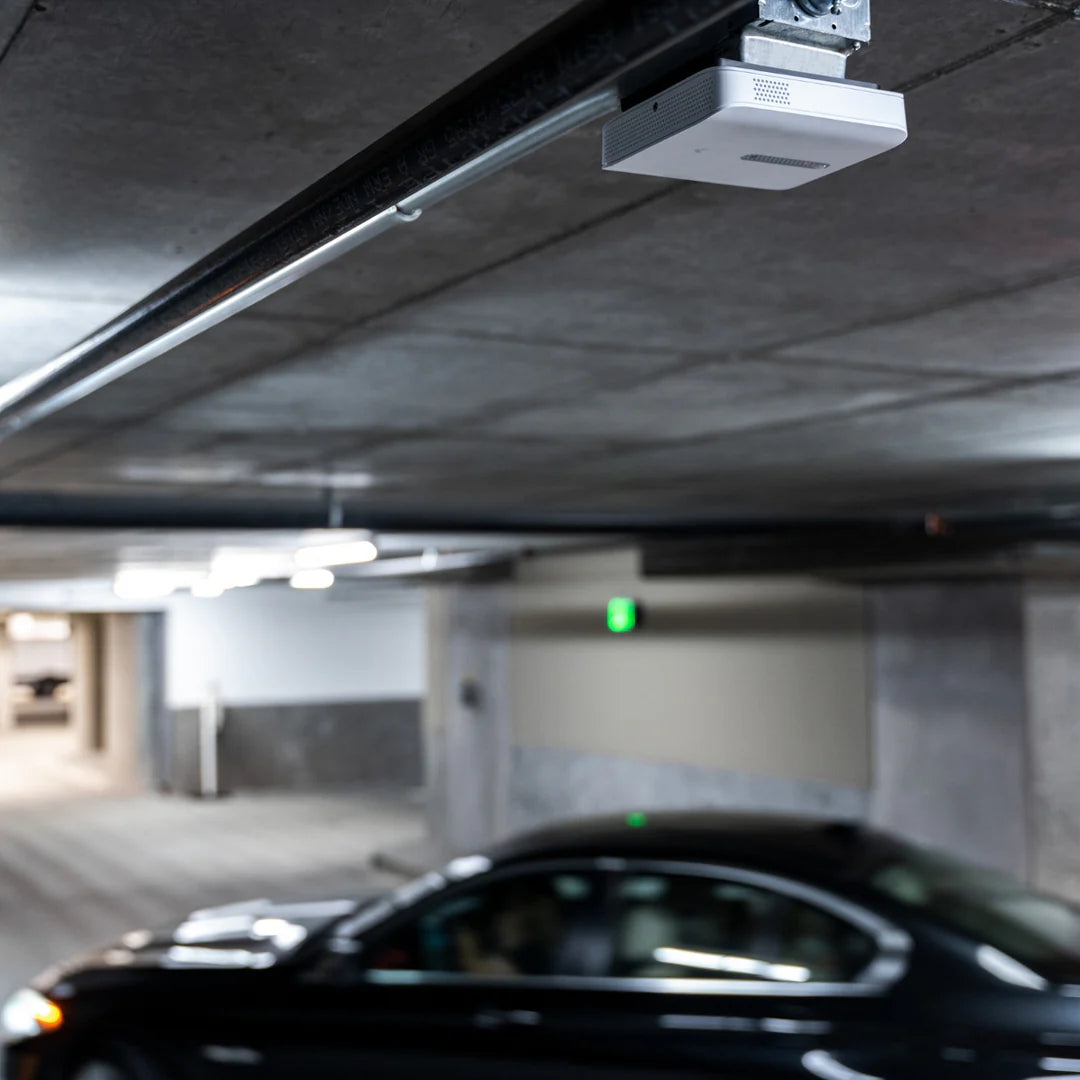

Anticipated Installation Locations	Server room closet (on ceiling or on wall), Open office area (on ceiling or on wall), Bathroom/locker room (on ceiling), Closed rooms (on ceiling or on wall), Manufacturing floors (on ceiling or on wall), Hard goods storage facilities (on ceiling or on wall)
Temperature	Sensor: CMOS, Operating Range: -5 to 45º C (23 to 113° F), Typical Accuracy: ± 1° C, Units: º C / º F
Humidity	Sensor: CMOS, Operating Range: 0 - 95% non-condensing, Typical Accuracy: ± 3% @ 25º C
CO2	Sensor: Photoacoustic, Range: 0 - 40,000 ppm, Typical Accuracy: 400 ppm - 1000 ppm ± 75 ppm, 1001 ppm - 2000 ppm ± (40 ppm + 5% of reading)
PM 2.5	Sensor: Laser scattering optical, Sensor Range: 0 - 1000 μg/m3, Typical Accuracy: 0 - 100 μg/m3: ± 25 μg/m3 + 5 % m.v
PM 4	Sensor: Laser scattering optical, Sensor Range: 0 - 1000 μg/m3, Typical Accuracy: 0 - 100 μg/m3: ± 25 μg/m3, 100 - 1000 μg/m3: ± 25% m.v.
PM 10	Sensor: Laser scattering optical, Sensor Range: 0 - 1000 μg/m3, Typical Accuracy: 0 - 100 μg/m3: ± 25 μg/m3, 100 - 1000 μg/m3: ± 25% m.v.
CO	Sensor: Electrochemical, Range: 0 - 1000 ppm
TVOC Index	Sensor: MOX, Range: 0 - 500
Air Quality Index	Sensor: U.S. Air Quality Index, derived from multiple sensors, Range: 0 - 500
Vape Index	Sensor: Proprietary formula derived from multiple sensors, Range: 0 - 100
Motion	Sensor: Passive Infrared Sensor, FoV: 120°
Noise	Sensor: MEMS Microphone, Range: 20 - 120 dB SPL (A-Weighted), Typical Accuracy: ± 5 dB
Heat Index	Sensor: Formula derived from other sensors, Range: 23 °F to 160 °F
Humidex	Sensor: Formula derived from other sensors, Range: 0-50
Dew Point Index	Sensor: Formula derived from other sensors, Range: 23 °F to 122 °F
Mold Risk Index	Sensor: Formula derived from other sensors, Range: 0-3 Index
RESET® Viral Index	Sensor: Formula derived from other sensors, Range: 0% - 100%
