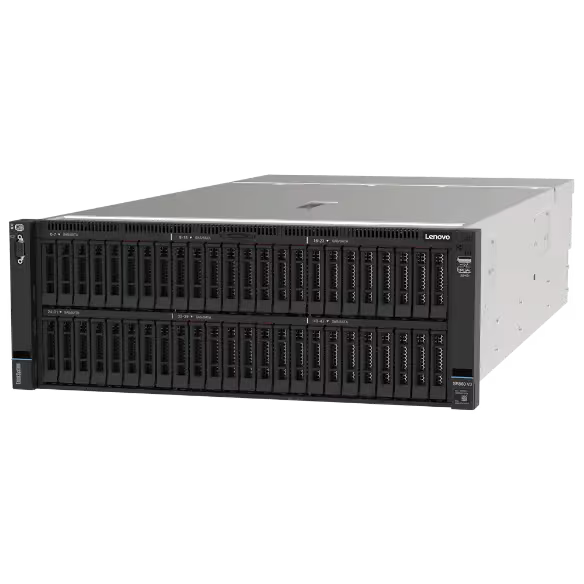

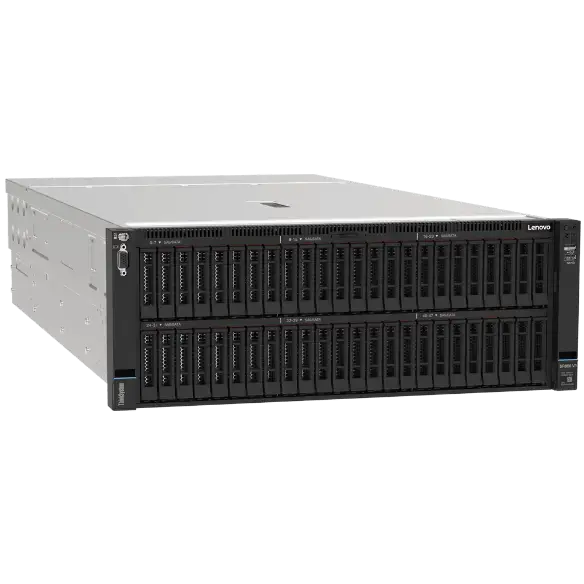

ThinkSystem SR860 V3 Large Memory Server

ThinkSystem SR860 V3 Large Memory Server

Regular price $8,993.95
Regular price Sale price $8,993.95
Sale Sold out
Quantity
View full details

Description

  • 4th Gen Intel® Xeon® Scalable processors
  • Up to 16TB DDR5 memory
  • Up to 48x 2.5" SAS/SATA drives

Features

Next-Gen Workload Ready

The SR860 V3 scales up to four 4th Gen Intel® Xeon® Scalable processors and up to four enterprise-grade GPUs. It easily handles enterprise virtualization, workload consolidation, in-memory computing such as SAP HANA, databases, and GPU-intensive applications such as AI and 3D modeling.

Maximum Performance Paired with Minimum Effort

The Lenovo ThinkSystem SR860 V3 supports more CPU cores*, capacity*, and offers 50% more bandwidth* from the latest DDR5 memory. Equipped with next-gen technology that eliminates bottlenecks from expansion slots to NVMe drives.

Superior Security and Exceptional RAS

The LenovoSR860 V3 server is at the top of RAS (Reliability, Availability, and Serviceability) list. Features like Predictive Failure Analysis, error detection, self-healing, and Light path diagnostics easy for failure identification. XClarity provides simple and standardized management, reducing provisioning time by 95% compared to manual operations.

Tech Specs

Form Factor 4U
Processor Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W
Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators
GPU Support Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs
Memory Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz.
Drive Bays Up to 48x 2.5" drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
Expansion
  • Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots
  • Front: VGA, 1x USB 3.1, 1x USB 2.0

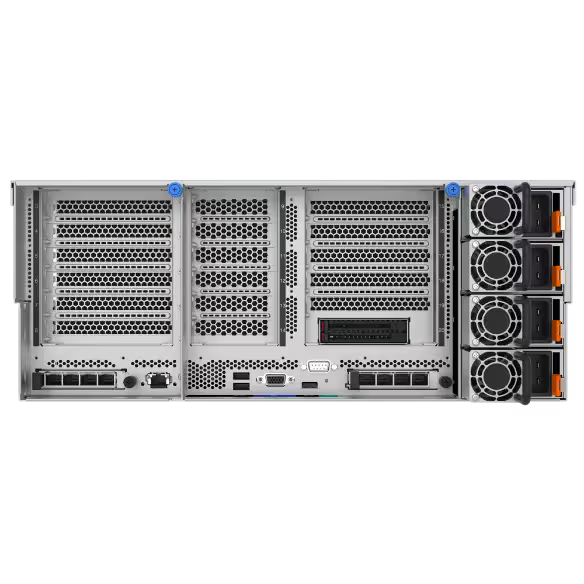

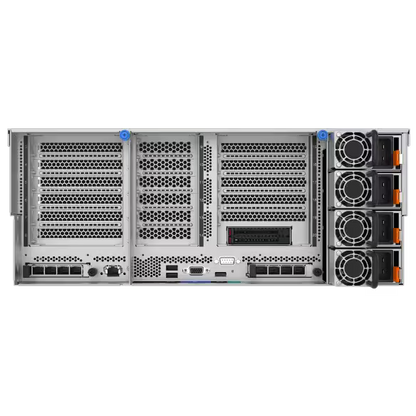

  • Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
Network Interface 2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE
Power Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
High Availability PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
Security Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
HBA/RAID Support Support for ThinkSystem PCIe RAID/HBA cards
System Management Lenovo XClarity Controller; Redfish support
OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information
Limited Warranty 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
Datasheet lenovopress.com/ds0156
