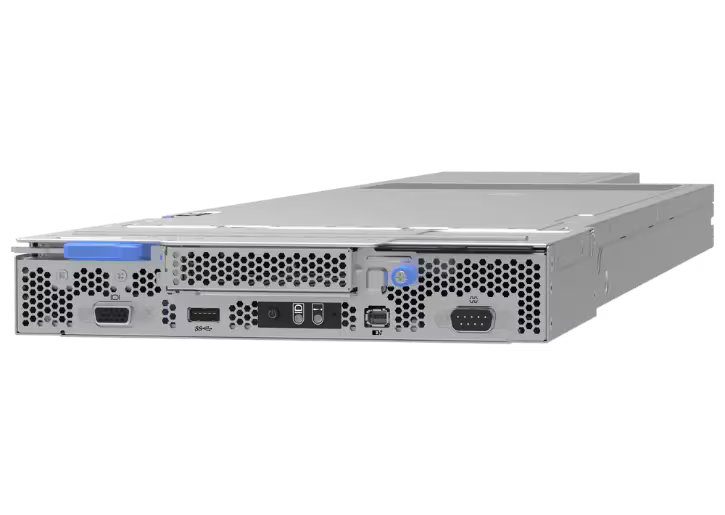

ThinkSystem SD530 V3 Multi-Node Server

• Up to 2x 5^th Gen Intel^® Xeon^® Platinum processors with up to 64 cores each
• Up to 2x CPUs 350W (1CPU), 205W (2CPU)
• Up to 2x E3.S EDSFF drives per node
• Supports 1x 75W GPU
• Up to 2TB memory with 16x 128GB TruDDR5 RDIMMs
• Supports 1x PCIe x16 Gen5 HHHL slot and 1x OCP 3.0 slot
• Supports SW RAID (VROC) with both Simple Swap & Hot Swap configuration

Features

Dense Processing Power

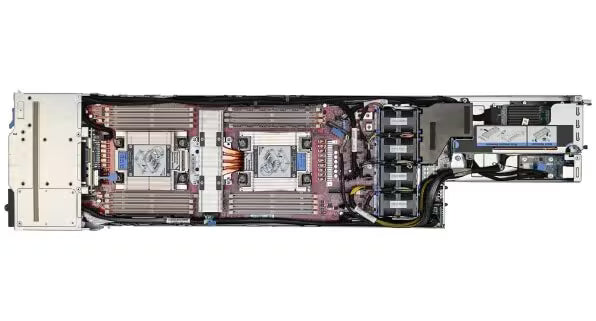

The SD530 V3 is a dense multi-node 1U half-width server (node) with up to two 64-core Intel^® Xeon Scalable processors. It provides twice the core density as a standard 1U server, so you get the most performance from your data center footprint.

Optimized for workloads requiring minimal storage and PCIe support. The ThinkSystem SD530 V3 is ideal for multiple applications including processing mass amounts of transactional data and increasing virtual machine density for cloud applications.

Flexible Workload Optimization

The modular multi-node format of the SD530 V3 adds greater flexibility to your rack space. Start with one node and scale out as needed and you can mix nodes in the same chassis to meet your processing needs.

With double the density, COLO customers and Cloud Service Providers can easily increase the number of users by increasing virtual machine density in a smaller footprint.

Efficiency and Performance

The ThinkSystem SD530 V3 is thermally designed for efficiency and performance. With 1U optimized thermals and twice the core density, it provides efficient processing power reducing OPEX.

Large enterprises and HPCs can process large amounts of data quickly and efficiently. The ThinkSystem SD530 V3 maximizes core density while minimizing the data center footprint. This realizes space and energy savings over a standard rack server.

Specifications may vary depending upon region / model.

Tech Specs
