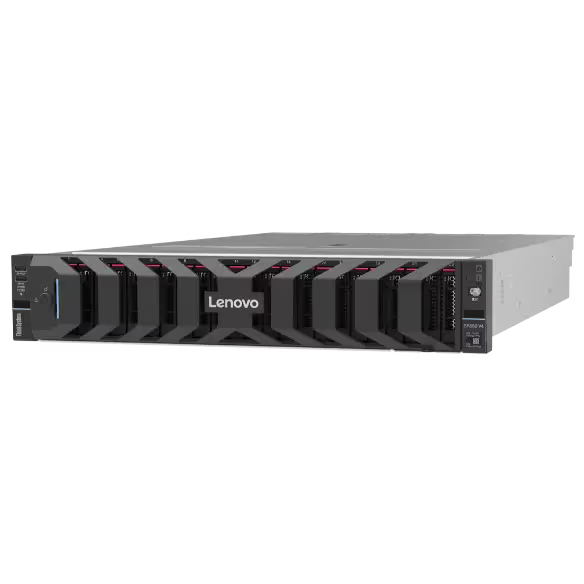

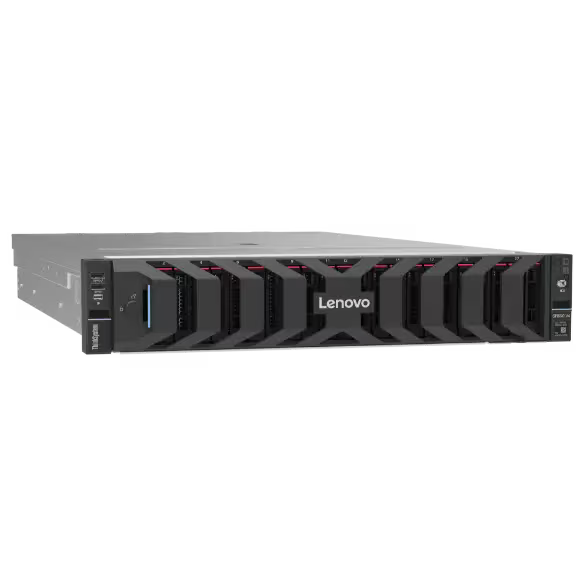

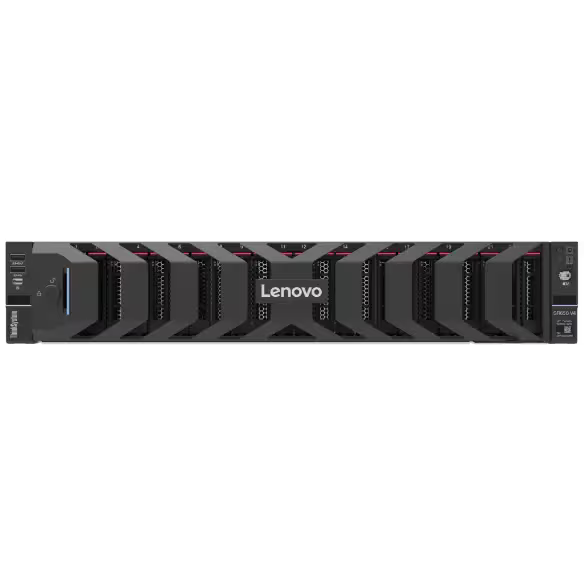

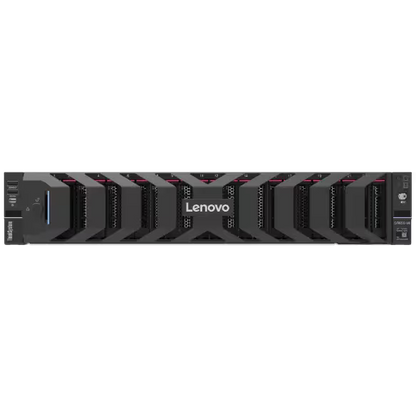

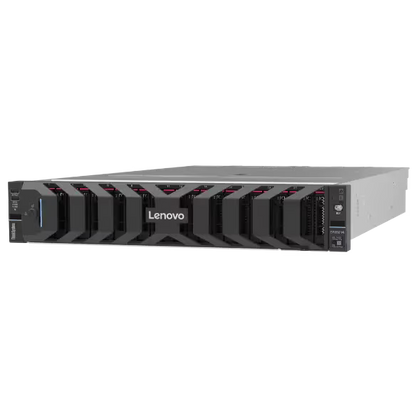

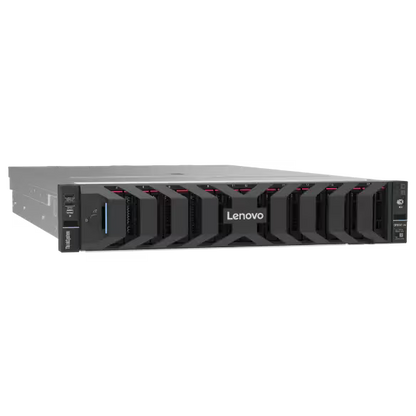

ThinkSystem SR650 V4

ThinkSystem SR650 V4

Regular price $2,984.45
Regular price Sale price $2,984.45
Sale Sold out
Quantity
View full details

Description

  • Up to 2x Intel® Xeon® 6 processors
  • Memory: Supports large memory configurations with TruDDR5 RDIMMs, MRDIMMs, and CXL memory modules for enhanced performance
  • Advanced backplane technology with support for both SSD and HDD drives

Features

Versatility Meets Performance

The Lenovo ThinkSystem SR650 V4 is a versatile 2U rack server powered by Intel® Xeon® 6 processors.

  • Optimized for Enterprise Workloads: Ideal for virtualization, databases, hybrid cloud, and analytics.
  • Flexible Scalability: Supports up to 32x TruDDR5 RDIMMs, 36x NVMe drives, and 10x PCIe Gen5 slots.
  • Sustainability and Reliability: Optional Lenovo Neptune® cooling and six nines uptime reliability for reduced costs and environmental impact.

The SR650 V4 offers scalability, efficiency, and security, delivering exceptional value for enterprises.

AI-Driven Intelligence Meets Performance - Smarter AI Everywhere

Deploying AI requires new skills and systems, with power, space, and cooling needs often leading to co-location or cloud solutions. Lenovo ThinkSystem SR650 V4 with XClarity One enables fast, secure deployment across on-prem, co-located, or cloud infrastructures.

Lenovo’s AI optimized management tool XClarity provides centralized control, remote access, and AI predictive analytics to prevent downtime. It also features SSD failure analysis and enhanced security with federated directory.

Engineered for Sustainability from Design to Disposal

Lenovo ThinkSystem SR650 V4 reduces data center costs and environmental impact while delivering high performance. Its energy-efficient platforms meet ENERGY STAR® standards, enabling up to 3:1 rack consolidation.

Lenovo's Certified Refurbished program extends server life, and over 1 million assets have been recycled. The SR650 V4 features optional Lenovo Neptune® cooling for better thermal efficiency to help meet sustainability goals.

Tech Specs

Form Factor/Height 2U rack server
Processors Up to 2x Intel® Xeon® 6 processors, up to 86 cores and 350W TDP
Drive Bays

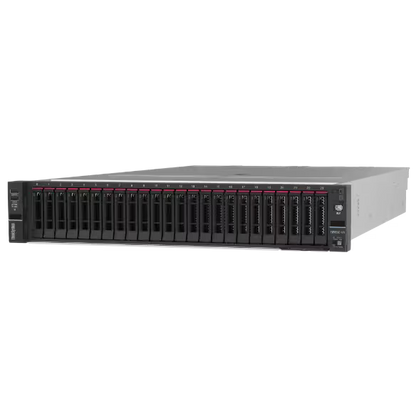

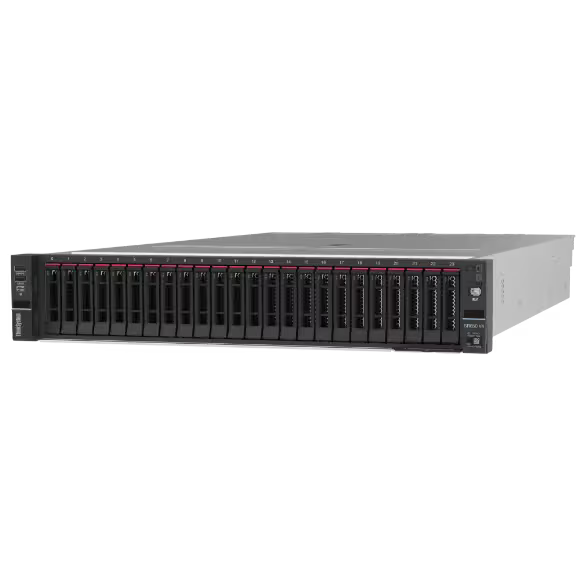

  • Front: Up to 24x 2.5″ SAS/SATA/NVMe, or 32x E3.S NVMe, or 12x 3.5″ SAS/SATA
  • Mid: Up to 8x 2.5″ SAS/SATA/NVMe
  • Rear: Up to 8x 2.5″ or 4x 3.5″ SAS/SATA/NVMe
  • Bootable device: Up to 2x M.2 SATA/NVMe drives with RAID support, optional hot swap
  • Supports Direct NVMe, VROC/VMD
Memory
  • Supports up to 32x TruDDR5 3DS/RDIMMs with speeds up to 6400MHz; up to 16x TruDDR5 MRDIMMs with speeds up to 8000MHz.
  • Maximum capacity up to 8TB
Expansion Slots
  • Up to 10x PCIe Gen5 slots
  • 2x OCP 3.0 slots
GPUs Up to 10x single-width GPUs or 2x double-width GPUs
Network Interface
  • OCP adapter installed in the OCP 3.0 slot
  • Networking PCIe adapters
Ports

Front:

  • Optional 2x USB 3.0 with XClarity Mobile support and 1x mini DP
  • Optional External diagnostics handset port

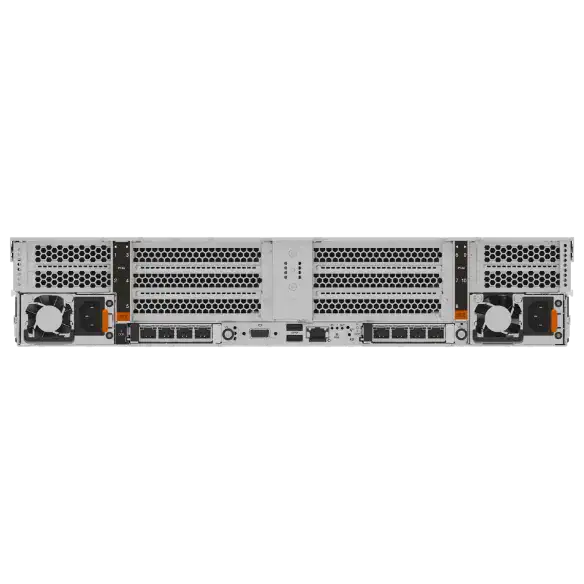

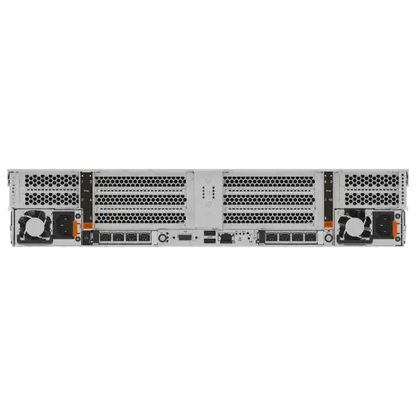

Rear:

  • 2x USB 3.0 G1
  • VGA
  • 1GbE RJ-45 dedicated management port
  • Optional: 2nd 1GbE management port in OCP slot location
  • Optional Serial port
HBA/RAID Support
  • VROC for NVMe SW RAID (0,1,5,10)
  • Standard and internal PCIe RAID/HBA adapters
Cooling Solution Lenovo Neptune® Core and Neptune® Air technology
Power Dual Redundant AC & DC (multiple wattages); Platinum & Titanium efficiency ratings
Systems Management Lenovo XClarity Controller
OS Support
  • Microsoft
  • SUSE
  • Red Hat
  • VMware

Visit lenovopress.com/osig for details.

Limited Warranty
  • 1-year & 3-year customer replaceable unit and onsite service
  • Next business day 9am to 5pm
  • Optional service upgrades
