Description
- 10-36 server cores with up to 1TB of memory
- Broad-wired and wireless connectivity
- Robust server that can continuously operate between 5°C and 45°C
Features
Built for AI at the Edge

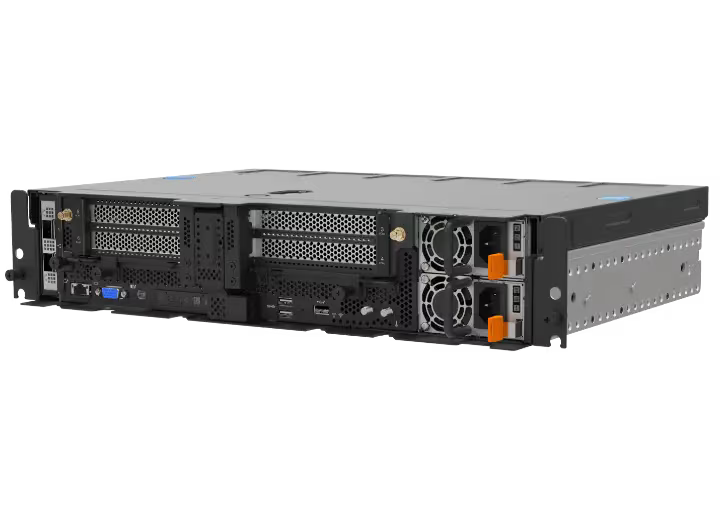

The ThinkEdge SE450 is the latest server for AI at the Edge. Designed and built with the unique requirements for Edge servers in mind, it is versatile enough to stretch the limitations of server locations, providing a variety of connectivity and security options and easily managed with Lenovo XClarity Controller. The ThinkEdge SE450 is a rugged compact-sized Edge AI server focused on enhanced processing power, increased security, and remote manageability for edge environments.
Unique performance and form
The ThinkEdge SE450 is a 1S 3rd Gen Intel® Xeon Platinum processor-based server, with a 2U height and short depth case that can go anywhere. Mount it on a wall, stack it on a shelf or install it in a rack. This rugged Edge server can continuously operate between 5°C and 45°C as well as high performance in high dust and vibration environments.
Powerful Edge AI server
Data processing power is a challenge at the edge, where constant insights using AI workloads are needed to make the right decisions. The ThinkEdge SE450 is designed to provide higher processing power at the edge. With several wired and wireless Wi-Fi connectivity options, this compact edge server is reliable for a wide variety of Edge and AI workloads.
Tech Specs
Form Factor | 2U rack server 300mm (11.8in) depth with 4 FHHL adapter or 2U rack server 360mm (14.2in) depth with 4 FHFL adapter |
Processor | Up to 1x 3rd Gen Intel® Xeon® Platinum processor, up to 36 cores, up to 225W TDP |
Drive Bays | Up to 6x 2.5-inch 7mm drives; Up to 6x NVMe drives supported; 2x M.2 boot drives (RAID 1) |
Memory | 10x DDR4 memory slots; Maximum 1TB using 8x 128GB 3DS RDIMMs; Supports up to 2x Intel® Optane™ Persistent Memory 200 Series modules (PMem) |
Expansion Slots | Up to 4x PCIe 4.0 slots, 1x OCP 3.0 slot |
GPUs | Up to 4x single-width GPUs or 2x double-width GPUs |
Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |
Ports | Front: 1x Power Button, 1x system locator, health with LED, 1x VGA, 2x USB 3.1, 1x Serial Port (optional), 1x RJ-45 1Gb for dedicated management, 1x system locator LED Optional WIFI (management) |
HBA/RAID Support | SW RAID standard; optional HW RAID or SAS HBA |
Power | Dual redundant power supplies AC (up to 1800W Platinum) or Dual redundant power supplies -48V DC 1100W |
Systems Management | Lenovo XClarity Controller |
OS Support | Microsoft, Red Hat, Ubuntu, CentOS, VMware. Visit lenovopress.com/osig for details. |
Limited Warranty | 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
