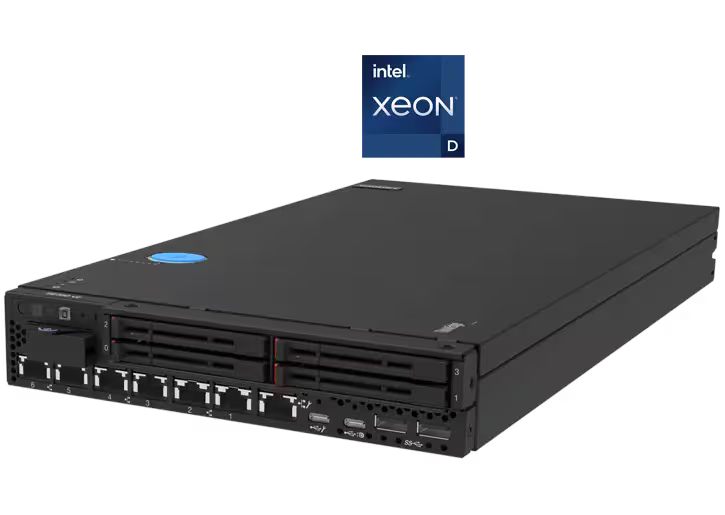

ThinkEdge SE350 V2 Edge Server

ThinkEdge SE350 V2 Edge Server

Regular price $2,061.15
Regular price Sale price $2,061.15
Sale Sold out
Quantity
View full details

Description

  • Compact form factor for space-constrained environments
  • ThinkShield lifecycle security, physical tamper protection, and key encrypted storage
  • Full remote manageability – Cloud-based ThinkShield Key Vault Portal
  • Easy connectivity with 1G or 10G/25G wired and 2.5G TSN networking supported
  • Suitable for harsh environments with extended temperature range, high shock, and vibration tolerance

Features

The latest Edge computing workhorse

The ThinkEdge SE350 V2 is the latest storage optimized workhorse for the Edge. Designed and built with the unique requirements for Edge servers in mind, it is versatile enough to stretch the limitations of server locations, providing industrial networking connectivity and security options and easily managed with Lenovo XClarity Controller. The ThinkEdge SE350 V2 is a rugged, compact-sized Edge solution with a focus on smart connectivity, business security, and manageability for the harsh environment.

Unique performance and form

The ThinkEdge SE350 V2 is an Intel® Xeon-D® processor-based server, with a 1U height, half width and short depth case that can go anywhere. Mount it on a wall, ceiling or install it in a rack. This rugged Edge server can handle anything from 0-55°C as well as full performance in high-dust and vibration environments.

Secure, connected, reliable

Information availability is a challenging issue for Edge users, who require constant insight into their operations, so they make the right decisions. The ThinkEdge SE350 V2 is designed to provide industrial networking connectivity options with 1G/2.5G/10G/25G wired connection ability. This purpose-built compact server is reliable for a wide variety of Edge workloads. It can be remotely claimed, activated, and managed as well as unlocked in case of tampering or set up by using ThinkShield Key Vault Portal and accompanying end-user app.

Tech Specs

Form Factor/Height 1U height, half width edge server; Height: 41.7mm, Width: 209mm, Depth: 384mm
Processor 1-socket Intel® Xeon® D-2700, up to 16 cores
Memory Up to 256GB in 4x slots, using 64GB DIMMs; 3200MHz TruDDR4
Internal Storage Options
  • 2x M.2 2280 SATA boot drives + 4x 2.5" 7mm HS NVMe/SATA data storage drives
  • 2x M.2 2280 NVMe boot drives + 2x 2.5" 15mm HS NVMe/SATA data storage drives
  • SED, high temperature, high capacity, and high endurance drive options
  • Optional encryption key deletion on tamper or theft detection
RAID Support
  • RAID 0, 1 for boot drives
  • RAID 0, 1, 5, 10 for data drives
Mounting Options
  • Single node mounting options for desktop, VESA, DIN, wall, or ceiling
  • 1U2N Enclosure for two nodes side-by-side and internal power supply. Depth: 476.1mm, Height: 1U
  • 1U2N Enclosure for two nodes side-by-side and 4x external power supplies. Depth: 773.12mm, Height: 1U
  • 2U2N Short Depth Enclosure for two nodes sides by side + 4x power supplies: Depth: 476.1mm, Height: 2U
  • Locking bezels and dust filter options
Power
  • Dual-redundant external power supplies 300W 115V/230V AC
  • Dual DC supply: 12V-48VDC
  • Single internal AC power supply: 500W
Network Interfaces (Wired)
  • 4x 10GbE/25GbE SFP+/SFP28
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port; or
  • 4x 1GbE
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port
Accelerators and PCIe Expansion N/A
I/O
  • Front: 2x USB 3.0 (Type-A) + 1x BMC USB 2.0 (Type-C), 1x Display USB-C (USB 2.0 + Display Port (video) / USB3.2 Gen 1 auto switch), 1x BMC serial RJ45 management port
  • Rear: 1x RJ45 Console Serial Port (can be disabled)
Systems Management Lenovo XClarity Administrator with mobile option
Environmental Extended operating temperature of 0-55°C, up to 40G shock & 1.91Grms vibration, IEC 60068, optional dust filter
Security
  • ThinkShield Key Vault secure management with motion and intrusion tamper protection
  • Optional Key Vault SED encrypted storage for boot and data drives
  • Lenovo Trusted Supplier Program, Secure boot, and Smart USB Protections
  • Optional Kensington keyed lock compatible chassis
  • Nationz TPM 2.0 for customers in China
  • Cable locking bezel
Operating Systems Microsoft Windows Server, SLES, Ubuntu, RHEL, VMware ESXi, vSAN. Visit lenovopress.lenovo.com/osig for details.
Limited Warranty 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
