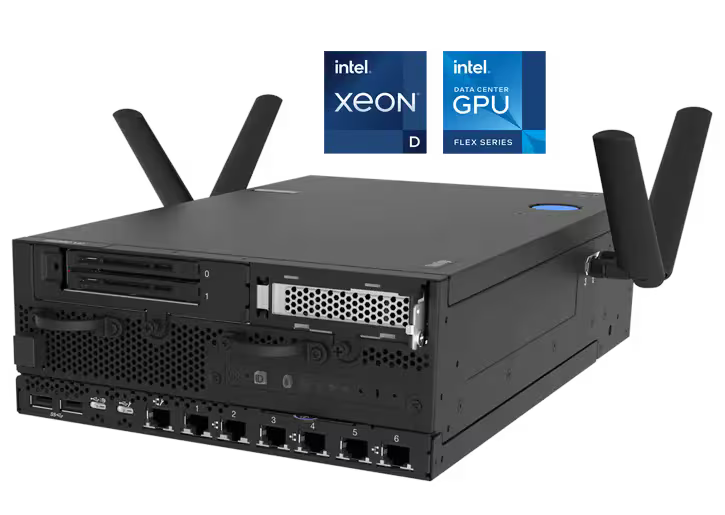

Lenovo ThinkEdge SE360 V2

Lenovo ThinkEdge SE360 V2

Regular price $2,680.65
Regular price Sale price $2,680.65
Sale Sold out
Quantity
View full details

Description

  • The SE360 V2 has a compact form factor that makes it ideal for space-constrained environments
  • ThinkShield lifecycle security, physical tamper protection, and key-encrypted storage
  • Full remote manageability via the Cloud-based ThinkShield Key Vault Portal
  • Easy connectivity with Bluetooth and WLAN
  • The extended temperature range combined with high shock and vibration tolerances make it a solid choice for applications in harsh environments

Features

Lenovo’s next Edge workhorse is here

The ThinkEdge SE360 V2 has been designed and built with the unique requirements to address AI@Edge applications for Edge servers in mind. Its versatility allows it to stretch the limitations of server locations, giving you new options of connectivity and security. It’s all easily managed with the Lenovo XClarity Controller as well as a rugged, compact-sized Edge solution you can rely on for use in harsh environments.

Unique performance and form

The ThinkEdge SE360 V2 is an Intel® Xeon-D ® processor-based server, with a 2U height, half-width, and a short depth case that feels at home practically anywhere. Mount it on a wall or ceiling or install it in a rack. This rugged Edge server can handle temperature changes from 0-55°C as well as high dust and vibration environments. it also supports extreme extended temperature -20~65°C with certain configurations and with marine certification.

Secure, connected, reliable

Edge users rely on constant insights into their operations so they can make fast, informed business decisions, but some environments make getting that information a challenge. The ThinkEdge SE360 V2 reduces those challenges by providing several connectivity options with wired and secure wireless WLAN and Bluetooth connection ability. It’s built to perform across a wide variety of Edge AI workloads. It can be remotely claimed, activated and managed as well as unlocked in case of tamper or set up by using ThinkShield Key Vault Portal and accompanying end-user app.

Tech Specs

Form Factor/Height 2U height, half-width edge server; Height: 84.5mm, Width: 212mm, Depth: 317.5mm
Processor 1-socket Intel® Xeon® D-2700, up to 16 cores
Memory Up to 256GB in 4x slots, using 64GB DIMMs; 3200MHz TruDDR4
Storage Options
  • Up to 2x SATA/NVMe 2.5" 7mm drives HS; Up to 8x M.2 using NVMe data storage drives
  • 2x M.2 2280 NVMe boot drives
  • SED, high temperature, high capacity, and high endurance drive options
  • Optional encryption key deletion on tamper or theft detection
RAID Support
  • RAID 0, 1 for boot drives
  • RAID 0, 1, 5, 10 for data drives
Mounting Options
  • Single node mounting options for desktop, VESA, DIN, wall, or ceiling
  • 2U2N Short Depth Enclosure for two nodes sides by side: Depth: 466mm, Height: 2U
  • Locking bezels and dust filter options
Power
  • Dual-redundant external power supplies 300W 115V/230V AC
  • Dual DC supply: 12V-48VDC
  • Single internal AC power supply: 500W
Network Interfaces (Wired)
  • 4x 10GbE/25GbE SFP+/SFP28
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port; or
  • 4x 1GbE
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port
Network Interfaces (Wireless)
  • Four wireless SMA connectors for WLAN
  • 1 wireless SMA connector for Bluetooth
  • Wi-Fi 128/192-bits encrypted WPA2, 802.11 a/b/g/n/ac/ax
  • Geotracking
Accelerators and PCIe Expansion
  • 1x PCIe G4 x16 HHHL (75W) + 1x PCIe G4 x16 FHHL (150W)
  • Support for Nvidia A2 and L4, Qualcomm Cloud AI 100
  • Support for AI inference
  • Support for GPU, FGPA, ASIC accelerators
  • 2x PCIe network card expansion
  • 4x 1GbE RJ45 PCIe
  • 4x 10GBASE-T PCIe
  • 2x 10G/25G SFP28 PCIe
I/O
  • Front: 2x USB 3.2 Gen 1 (Type-A) + 1x BMC USB 2.0 (Type-C), 1x Display USB-C (USB 2.0 + Display Port (video) / USB3.2 Gen 1 auto switch), 1x BMC serial RJ45 management port
  • Rear: 1x RJ45 Console Serial USB and Console ports can be disabled
Systems Management Lenovo XClarity Administrator with mobile option
Environmental Extended operating temperature of 0-55°C, support -20~65°C with certain configuration, up to 40G shock & 1.91Grms vibration, IEC 60068, optional dust filter, IP3X, Marine certification
Security
  • ThinkShield Key Vault secure management with motion and intrusion tamper protection
  • Optional Key Vault SED encrypted storage for boot and data drives
  • Lenovo Trusted Supplier Program, Secure boot, and Smart USB Protections, Lenovo WLAN Security, Lenovo Bluetooth Security
  • Optional Kensington keyed lock compatible chassis
  • Nationz TPM 2.0 for customers in China
  • Cable locking bezel
  • Geotracking
Operating Systems Microsoft Windows Server, SLES, Ubuntu, RHEL, VMware ESXi, vSAN. Visit lenovopress.lenovo.com/osig for details.
Limited Warranty 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
